Hydro Royal Model Detail

Hydro Royal™ HR 125 RA, TA

125,000 BTU at 80/80/80, 109,000 BTU at 80/63/80, and 74,000 BTU at 50/63/80, available in heat-only, 3-phase, and heat-and-cool configurations.

Download Specs Talk to an Expert

125,000 BTUHeat Only or Heat & Cool30/70 Gallons Flow

Quick Overview

HR 125 Specifications

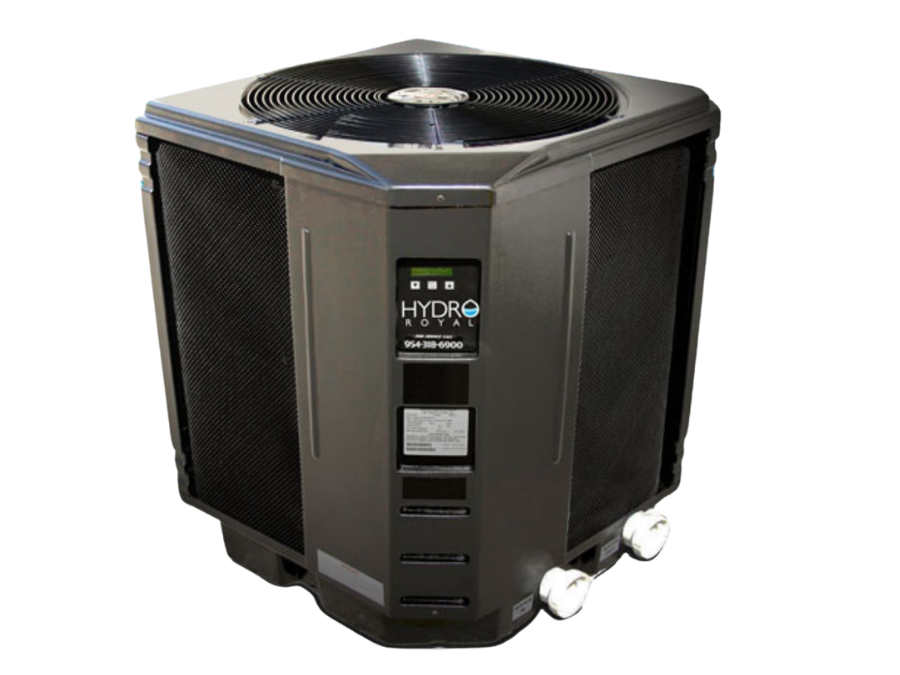

Hydro Royal Pool Heat Pump

Published Unit Details

Model Specifications

Page-level performance shown for the HR 125 RA / TA platform
Available in R-A, R-B, T-A, and T-B configurations
100% titanium heat exchanger design
Scroll compressor platform
45 gallon recommended flow
2-inch plumbing size

Performance Ratings

Published Test Points

125,000 BTU at 80/80/80 (6.6 COP)

109,000 BTU at 80/63/80 (5.9 COP)

74,000 BTU at 50/63/80 (4.1 COP)

Model Variants

Available Configurations

Heat Only

HR-125-R-A

Heat Exchanger: 100% Titanium Heat Exchanger
Min/Max Flow: 30/70 Gallons
Recommended Flow: 45 Gallons
Compressor: Scroll
Plumbing Size: 2"
Min Amps / Max Breaker: 37 / 50
Dimensions (Shipping): 31" x 31" x 42" (33" x 31" x 47")
Weight (Shipping): 234 lbs. (269 lbs.)

3 Phase

HR-125-R-B

Heat Exchanger: 100% Titanium Heat Exchanger
Min/Max Flow: 30/70 Gallons
Recommended Flow: 45 Gallons
Compressor: Scroll
Plumbing Size: 2"
Min Amps / Max Breaker: 37 / 50
Dimensions (Shipping): 31" x 31" x 42" (33" x 31" x 47")
Weight (Shipping): 234 lbs. (269 lbs.)

Heat & Cool

HR-125-T-A

Heat Exchanger: 100% Titanium Heat Exchanger
Min/Max Flow: 30/70 Gallons
Recommended Flow: 45 Gallons
Compressor: Scroll
Plumbing Size: 2"
Min Amps / Max Breaker: 37 / 50
Dimensions (Shipping): 31" x 31" x 42" (33" x 31" x 47")
Weight (Shipping): 234 lbs. (269 lbs.)

3 Phase / Heat & Cool

HR-125-T-B

Heat Exchanger: 100% Titanium Heat Exchanger
Min/Max Flow: 30/70 Gallons
Recommended Flow: 45 Gallons
Compressor: Scroll
Plumbing Size: 2"
Min Amps / Max Breaker: 37 / 50
Dimensions (Shipping): 31" x 31" x 42" (33" x 31" x 47")
Weight (Shipping): 234 lbs. (269 lbs.)

Titanium Features & Benefits

Heat Pump Features

Super-Sized evaporator coil
Largest in it’s class (20 square feet of wrap-around coil)
Higher performance in colder weather
Titanium Turbo Heat Exchanger
Impervious to erosion and corrosion
Full flow (no need to bypass)
Helium (He) Tested
Refrigerant system tested with the second smallest element
Finds leaks 100 times smaller than our competitors
Virtually eliminates refrigerant loss – No recharging!
Quiet scroll compressor
10-year limited warranty
The quietest of all compressors
More efficient and no maintenance
State of the art manufacturing
Each component individually stamped with the serial number
Computerized tracking system when service is required
Remote control ready
Compatible with all pool/spa automation controllers
Hurricane guard
UV resistant rust proof polymer
Tight mesh configuration for optimal protection
Diagnostic LCD Readout
Programmed in real words – No codes to learn
Self diagnostic LCD will display a fault if problems occur
Simple to use dual thermostat for pool and spa
Control lockout
Keeps renters or children from changing settings
ABS Plastic cabinet
UV inhibited / High – strength
Easy to clean. No rust!
